MORRFlate TenSix™ PSI Pro™ 12v Portable Compressor – Gen2

Set Your Pressure™!

• Air up a set of 35″ tires from 10 to 40 psi in under 5min (when combined with a 4 Tire Hose Kit)
• 10.6 CFM dual cylinder compressor at 0 PSI
• 6.5 CFM at 30 psi
• 10-120 psi in Auto Mode
• 1-150 psi in Manual Mode
• Thermal Cutoff Switch & Purge Valve
• 80% duty cycle @ 0psi (45min on, 10min off) (6-8 vehicles) (see duty cycle chart)
• 12v, 90amps peak, ~50amp running
• 14x7x9″ external dimensions
• 70-75 dB noise level from 1ft distance
• Beefed up carrying bag with accessory pockets
• Threaded filter caps so the compressor can be mounted in any direction/orientation (except upside down)

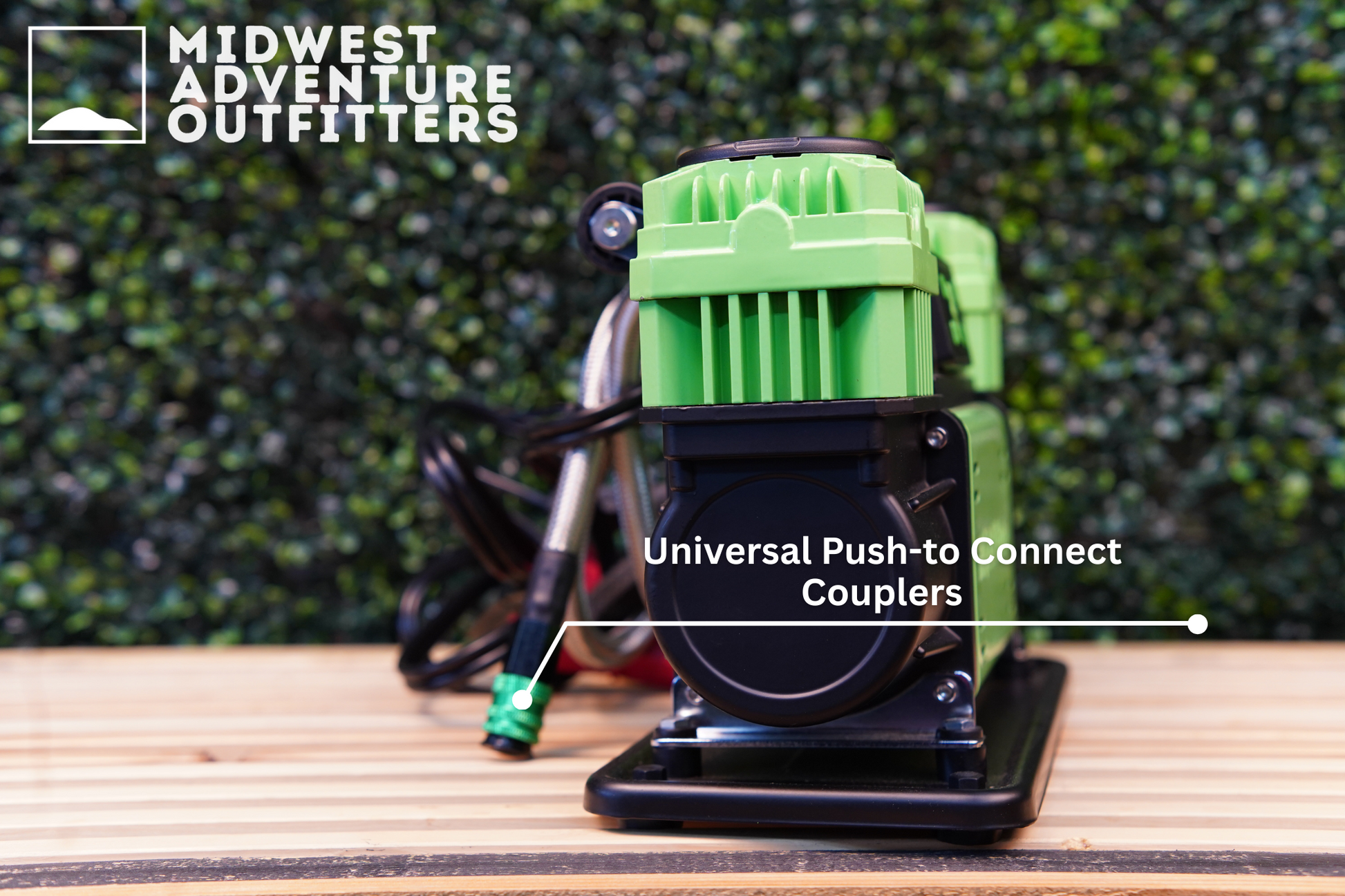

• USA Standard color matched air fitting – Push-to-connect “Universal” Coupler (Works with 1/4″ Industrial, Auto, or Aro fittings)
• WARNING: Compressors get hot! Recommended to wear gloves while disconnecting air fittings.
• Since the TenSix™ is rated for 10.6 CFM, it is highly recommended to use with a MORRFlate 4 Tire Inflation & Deflation™ Kit to avoid back pressures on the compressor from filling 1 tire at a time.
• 3 Year “No Hassle” Warranty!

Gen2 Upgrades (Also, now unique to only MORRFlate):

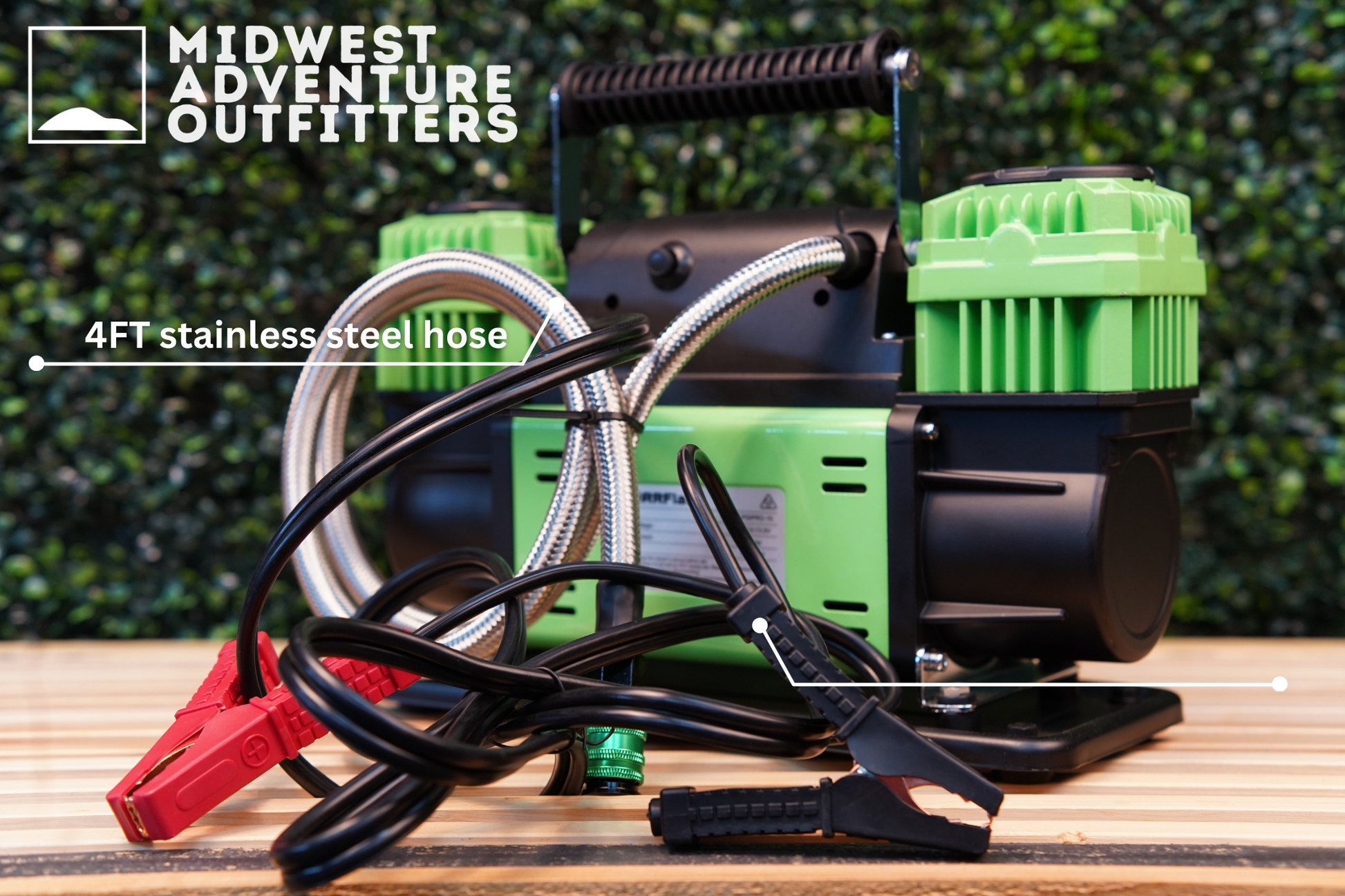

• Stainless Steel Outlet Hose (for better heat dissipation and heat sinking)
• Purge Valve (to release the internal pressures when done)

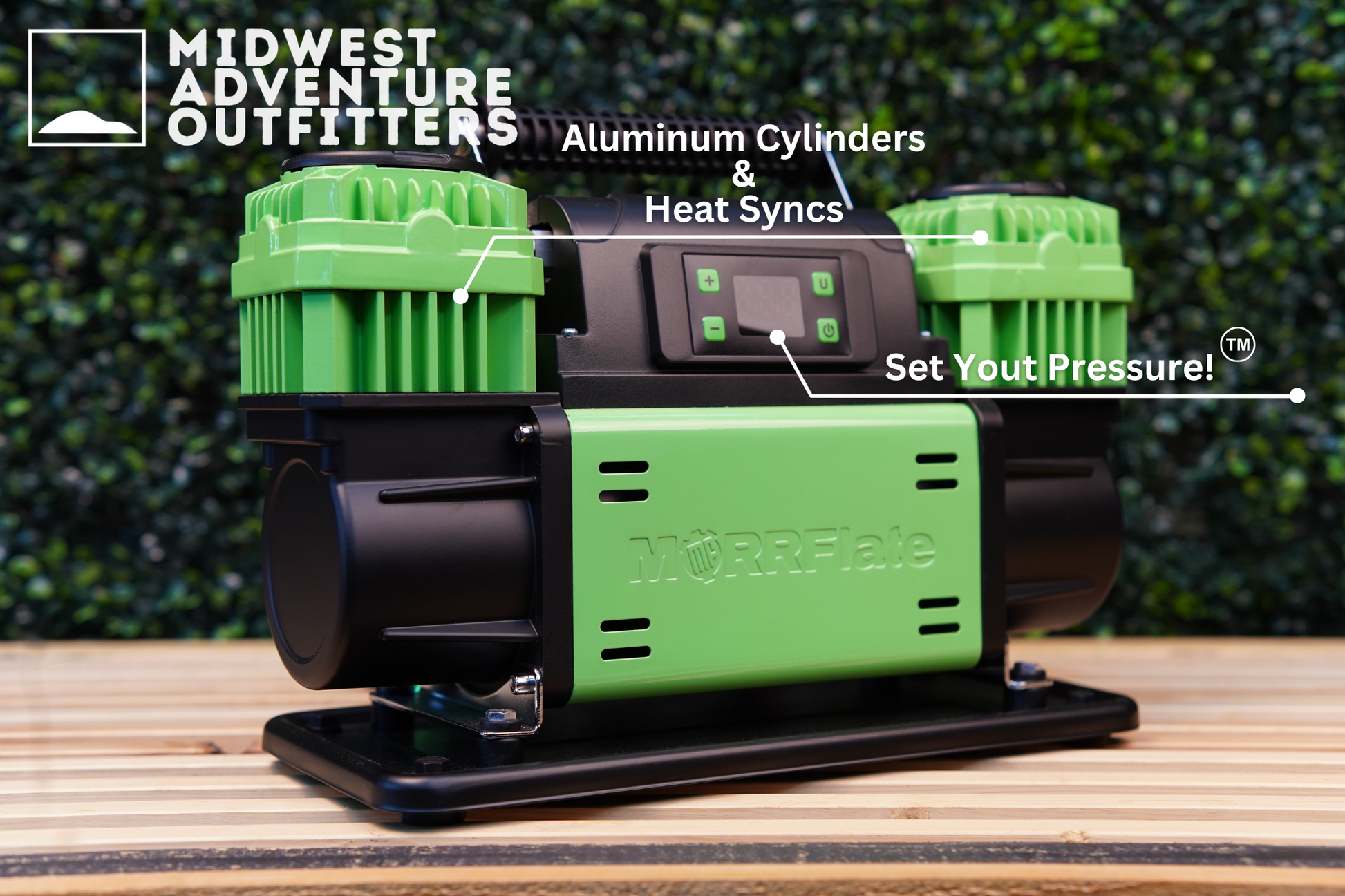

• Resized Aluminum heat sinks (upgraded from ABS so they actually fit the cylinders and works as a heat sink)
• Internal aluminum cylinders (upgraded from mild steel to dissipate heat better)
• New piston rings (better material for wear and heat resistance longevity).

Compressor user manuals can be found here for download or review.
